Item specifics
  • Wi-Fi Transmission Standard: 802.11g,802.11n,802.11b
  • 2.4G Wi-Fi Transmission Rate: 150 Mbps
  • Network Type: 4G
  • Networking Protocol: IEEE 802.11b/g/n
  • Wifi Frequence: 2.4G&5G
  • Brand Name: Huawei
  • Supports WPS: Yes
  • Wi-Fi Supported Frequency: 2.4G & 5G
  • Supports WDS: Yes
  • Model Number: E5180s-22
  • Supports VPN: Yes
  • Built-in Firewall: Yes
  • Products Status: Stock
  • WAN Ports: 1
  • Firewall: No
  • Wireless: Wireless
  • VPN: Yes
  • Max. LAN Data Rate: 150Mbps
Product Description



ODEL: HUAWEI E5180S-22

PRODUCT DETAIL: 4G WIFI ROUTER



As a high-performance LTE cube device, the E5180s-22 enables users to get access to wireless and wired networks.
The cube design as tiny as a cup see below photo , suitable to use for office and home,


The device have built in sim slot (micro sim). full auto after inserting sim mean you do not need to do any setting
4G BAND: LTE FDD 2600/2100/1800/900/800 MHz TDD 2600 Mhz
3G BAND: DC-HSPA+/HSPA+/HSPA/UMTS: 2100/900 MHz
EDGE/GPRS/GSM: 1900/1800/900/850 MHz


4G SPEED:
LTE DL Speed up to 150 Mbit/s @ 20M bandwidth
LTE UL Speed up to 50 Mbit/s
3G SPEED:
HSPA+DL (DOWNLOAD) up to 42.2Mbps
HSPA+UL up (UPLOAD)  to 5.76Mbps


FEATURE:
1 : External ports : One power port , One RJ11 port for telephone connections,One RJ45 port for LAN connections,One micro subscriber identity module (SIM) card port
PORT: 1 X LAN +  1 X Tel + 1 X Sim SLot
Dimensions (H x W x D) : 70 mm ×70 mm ×110 mm , Weight:About 250 g

2: Software
Supports the default route: 0.0.0.0. Supports the default gateway address: 192.168.8.1. Supports the Address Resolution Protocol (ARP). Supports the Internet Control Message Protocol (ICMP). Supports the domain name service (DNS).
Voice and fax
VoIP: Supports the Session Initiation Protocol (SIP)., Supports G.711a/G.711u/G.729a/G.729b/G.726 (-24/-32)/G.722, and G.723.1 for encoding and decoding.
CS voice :Supports CS voice communication over UMTS and GSM networks , Supports the circuit switched fallback (CSFB).
Fax: T.38 fax

The E5180s-22 provides one telephone port to which users can connect a telephone to implement basic voice functions or connect a fax machine to use fax services. When connected to a 2G network, the E5180s-22 supports circuit switched (CS) calls but not VoIP
Support SMS service :Writing/Sending/Receiving extra-long messages

3. Built in antenna
Frequency range 790–960 MHz, 1710–2690 MHz, Input impedance 50 Ω ,Standing wave ratio (SWR) < 3 ,Efficiency > 45% Gain 0–3 dBi ,Polarization type =Linear polarization

4-HUAWEI Mobile WiFi App
View service provider\'s name, the roaming status and signal strength.
View the data traffic usage and SMS
Manage the connected devices
Change LTE cube\'s SSID and password.

CONDITION: NEW
Includes
1 X E5180
1 X Power adapter
1 x LAN cable


Note: This modem have no sim lock, software lock ,it can be use any network and sim card includes ( Singtel ,starhub, M1 , Umobile, Maxis, Digi, Celcom ++ other oversea sim card)
Support Windows 2000/XP/Vista, Win7/8, Mac /Linux OS

 WARRANTY:
1 Year Local Warranty + 7 days 1-1 Faulty Exchange

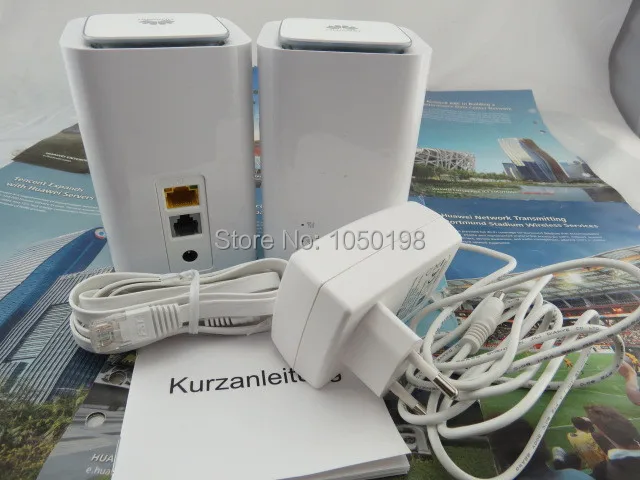

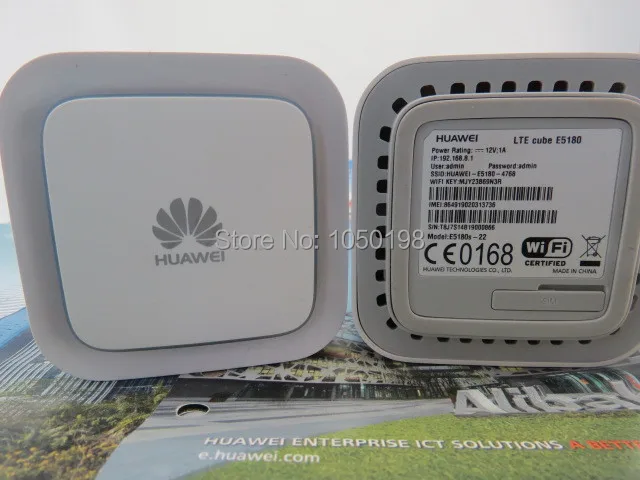

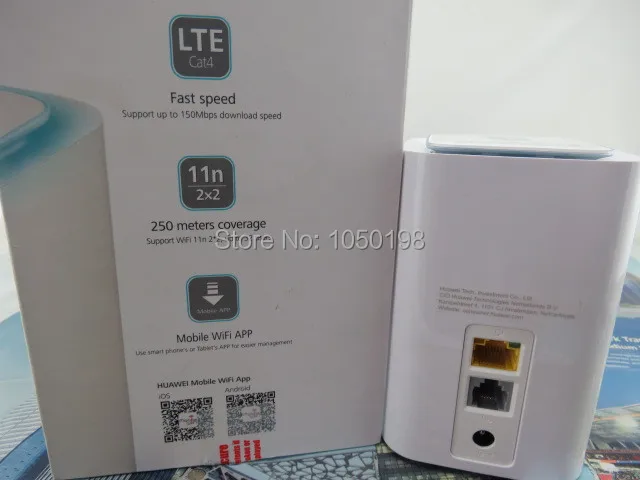

Actual Photo
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)
