Item specifics
  • Network Type: 4G/3G
  • Wifi Frequence: 2.4G
  • Supports VPN: No
  • Wi-Fi Transmission Standard: 802.11a,802.11n,802.11b
  • Wireless Security: WPA-PSK/WPA2-PSK
  • Supports WPS: Yes
  • Model Number: E5786s-32a
  • Built-in Firewall: No
  • Networking Protocol: IEEE 802.11n
  • 2.4G Wi-Fi Transmission Rate: 300 Mbps
  • Supports WDS: Yes
  • Wi-Fi Supported Frequency: 2.4G & 5G
  • Brand Name: TP-Link
  • Max. LAN Data Rate: 300Mbs
  • Antenna Peak Gain: 2dBi
  • LAN Ports: 4g
Product Description

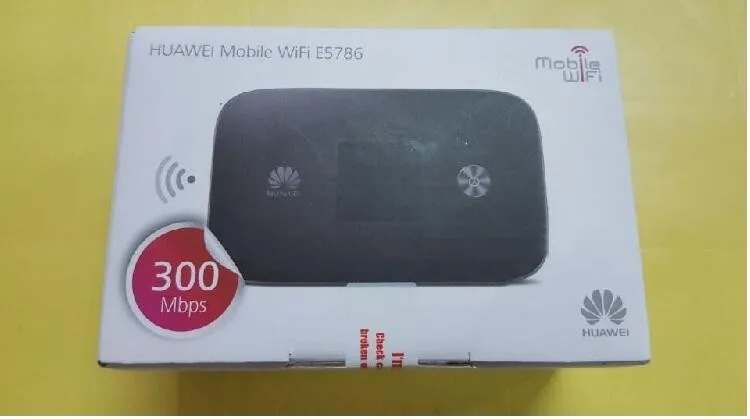

Huawei E5786 Technical Specifications:
* Huawei E5786s-32a:
LTE CA:
FDD 2600 MHz + 1800 MHz/1800 MHz + 800 MHz/2600
MHz + 800 MHz /2600 MHz intra-band contiguous/2100 MHz
intra-band contiguous/1800 MHz intra-band contiguous
TDD 2600 MHz intra-band contiguous
LTE:
- FDD 2600/2100/1800/900/850/800 MHz & TDD 2600 MHz


- DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100Mhz
* Network mode: FDD/TDD/DC-HSPA+/HSPA+/HSPA/UMTS/GSM/GPRS/EDGE
* LTE FDD CA (DL) data service of up to 300 Mbit/s
* LTE FDD (DL) data service of up to 150 Mbit/s
* LTE FDD (UL) data service of up to 50 Mbit/s
* LTE TDD CA (DL) data service of up to 224 Mbit/s
* LTE TDD (DL) data service of up to 112 Mbit/s
* LTE TDD (UL) data service of up to 20 Mbit/s
* DC-HSPA+ (DL) data service of up to 43.2 Mbit/s
* HSPA+ (DL) data service of up to 21.6 Mbit/s
* HSDPA (DL) data service of up to 14.4 Mbit/s
* HSUPA (UL) data service of up to 5.76 Mbit/s
* UMTS data service of up to 384 kbit/s
* EDGE data service of up to 236.8 kbit/s
* GPRS data service of up to 85.6 kbit/s
* PS domain data service based on LTE/UMTS/GSM
* SMS based on UMTS and GSM
* Built-in LTE/UMTS/GSM and WLAN high gain antenna
* Micro Secure Digital Memory (microSD) Card
* WLAN: IEEE 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz
* Dynamic frequency selection (DFS) for 5 GHz Wi-Fi
* Wi-Fi and WPS
* Menu-style LCD UI
* Five-second fast boot
* LTE/3G/Wi-Fi auto offload
* Support for USB-to-Ethernet conversion with the AF18 conversion cable
* Supply power to devices
* Press and Play
* IPv6/IPv4 dual stack (optional)
* Display current SSID and Wi-Fi key on the screen
* Built-in DHCP Server, DNS RELAY and NAT
* Online software upgrade
* Traffic statistic
* Standard Micro USB interface
* TFT-LCD screen
* Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8, Windows 8.1 (does not support Windows RT), MAC OS X 10.7, 10.8 and 10.9 with latest upgrades
* AC: 100–240 V, DC: 5 V, 2 A
* Capacity: 3.7 V, 3000 mAh,
* connect up to 10 devices simultaneously
* Battery: 3000 mAh, maximum operating time to 10 hours and maximum standby time to 500 hours
* Could be used as mobile power bank to charge iPhone, iPad
* Dimensions: 106.0mm / 66.0mm / 15.9mm
* Weight: 155g (with battery)
* Supported by systems : Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8, Mac OS X 10.6, 10.7, 10.8 and newer

E5786-1E5786-2E5786-3E5786-4
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.4kg (0.88lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
