Item specifics
  • Wifi Frequence: 2.4G
  • Supports VPN: No
  • Wi-Fi Transmission Standard: 802.11a,802.11n,802.11g
  • Network Type: 3G
  • Wireless Security: WPA-PSK/WPA2-PSK
  • Brand Name: Huawei
  • Supports WPS: Yes

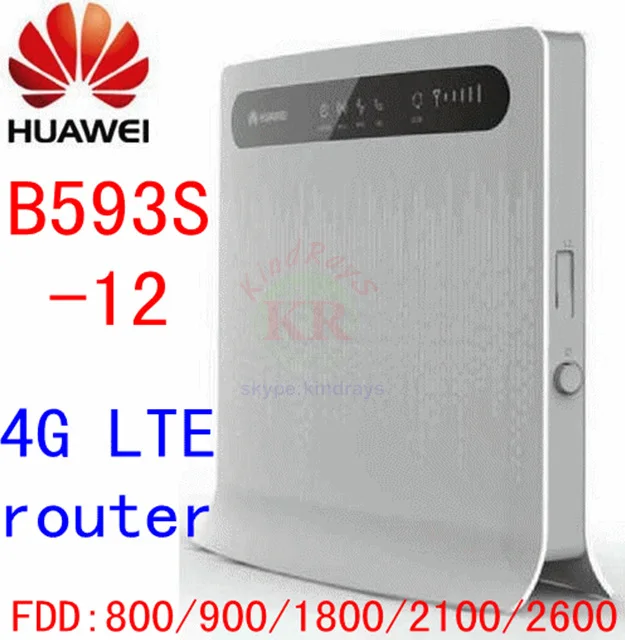

  • Huawei Model: B593
  • Model Number: B593s-12
  • Wi-Fi Supported Frequency: 2.4G
  • Max. LAN Data Rate: 100Mbs
  • LAN Ports: 4
  • Networking Protocol: IEEE 802.11n
  • Built-in Firewall: No
  • Antenna Peak Gain: 3dBi
  • 2.4G Wi-Fi Transmission Rate: 300 Mbps
  • Supports WDS: Yes
  • 4g lte: LTE FDD 800/900/1800/2100/2600 MHz
  • 3G Bands (MHz): UMTS 900/2100 MHz
  • WAN Ports: 4g
  • Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11a
Product Description

4g Life will Change Fate

      AD244511CEF912B3146EEEAD0B38F743b593s-82  e589u-12D69FBC5A0A8043B0BD8F2A648D4182DE



4g wifi modem  CPE Router  4G router   4G antenna

      54_tl-wdr7500         e5878_1    E5786 1alcatel_w800

 russian router      LTE router        CAT6 router    4G modem + router

Notice

if you need more, pls connect us:

skype:kindrays   / whatsApp:+8615388793663

1.In order to avoid the tax for you,some we will not send out package,because without package we can show lowest customs value for you



Device Features b593s-12 is different the b593u-12

Wireless broadband you can take with you

Do you know one of the best things about wireless broadband? No hard-wired installation, so if you move house or premises you can take your internet connection with you. Simple!


Up to 32 simultaneous WiFi devices

These days so many of our devices need internet access, at home or in the office. From desktops and laptops to mobile phones, tablets and smart TVs, you can connect the Huawei B593 4G WiFi Router to up to 32 devices simultaneously using WiFi 802.11b/g/n.


Supports wired network access

The Huawei B593 4G WiFi Router has four LAN ports for wired Ethernet connection of your devices.


Share files and printers over your network

Connect up a USB storage device to your router for sharing photos, music and movies over your network. You can also connect a printer for printing from devices connected to your network.


External Antenna Port

The Huawei B593 4G WiFi Router has two built-in antennas plus the ability to connect an optional external antenna for improved reception.


Wide range of supported data standards

This router supports 100Mbs 4G Long Term Evolution (LTE) Release 8, WCDMA/HSDPA R5, HSUPA R6, HSPA+ R7, DC-HSPA+ R8 and GSM/GPRS/EGPRS R99.



Specification:


4G Bands (MHz)LTE FDD 800/900/1800/2100/2600 MHz
3G Bands (MHz)UMTS 900/2100 MHz
GSM Bands (MHz)GSM: 850/900/1800/1900 MHz
Dimensions1900mm x 35mm x 165mm
WeightApprox 500g
External Interface4x Ethernet interface (RJ45)
2x USB interface
1x SIM card slot
1x WLAN button
1x WPS button
1x POWER button
Operating System SupportWin XP SP2/SP3, Vista SP1/SP2, Win 7, Mac OS X 10.5/10.6/10.7 with latest upgrades


huawei_b593_lte_cpe 0 huawei_b593_4g_cpe_lte_router





Operation systems it\'s compatible with:

* Windows 2000/ Windows XP/ Windows Vista/ Windows 7
* Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7
* Linux



HUAWEI B593 4g lte router

1. POWER Indicator 2. WLAN LED 3. WPS indicator 4. TEL indicator 5. MODE indicator
6. SIGNAL indicator 7. SIM card slot 8. POWER button 9. USB Port 10. Power supply position
11. USB-Port 12. Telephone port 13. LAN port 14 LAN indicator lights 15. WPS button
16. RESET button 17. WLAN mode



HUAWEI B593s-82



Application Instroduction:

1. Insert the SIM card into the SIM card slot.

2. Connect the power cord to the modem and the wall socket.

3. Turn on your computer and any other devices modem LAN and USB ports.

4. Turn on your modem POWER button.



CONNECTING PC TO THE MODEM WLAN CONNECTION

1. Turn on your modem POWER button.

2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.

3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

Note: * The SSID and network security key can be found on the label on the back of the modem.

* You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.

4. If the PIN code request is active, log network management page (192.168.1.1 ) and enter the correct PIN code in the field provided.


Network Management Page Opening

1. Make sure that your flash drive and a computer or device the connection is established correctly.

2. Start a web browser and enter the address 192.168.1.1

3. If the PIN code request is active, asking the network management side of it. The default PIN is 0000.



Light Indicators:

light Mode light Description
MODE Blue This light is a constant blue, when the modem is connected to the 4G network, but no data is transferred. The indicator light flashes blue when data is being transferred.
MODE Green This indicator light is constantly green when the modem is connected to a 3G network, but no data is transferred. The indicator light flashes Green when data is being transferred.
MODE Orange This light is constantly orange when the modem is connected to a 2G network, but no data is transferred. The indicator light flashes orange when data is being transferred.
MODE White This light will flash white when the modem to connect to the wireless network.
MODE Red This light is constantly red when the modem cannot connect to a wireless network or modem is not a wireless network.
MODE Mulberry This light is on when the SIM card is not recognized, or PIN has not been or PIN authentication fails.
WLAN On WLAN function is enabled.
LAN1-LAN4 On This light is on when the computer or other device is connected to the LAN port.
SIGNAL On More bars are lit, the stronger the wireless signal.



If you already have LTE CPE B593, you may need the 4G Antenna for Huawei B593, we can provide the original Huawei B593 as requested. There are three models for your reference:




Dear friends ,because of the different operators all over the world ,so there are many different logos on the huawei modems,we will send the modems at random in stock!

• All the items will be dispatched within 2 business days after your payment is clear.
• Note: China Post Air Mail/Parcel just belongs to worldwide post system which is much slower

than Special Delivery. Items will arrive in 7-25 business days to worldwide usually. And the

arrival time also depends on some factors and different areas. The general arrival time table is

shown below for your inference:


If the item is defect when you receive it or you are not satisfied with it, please return it within

14 days for a replacement or money back. But the items must be back in factory condition.
